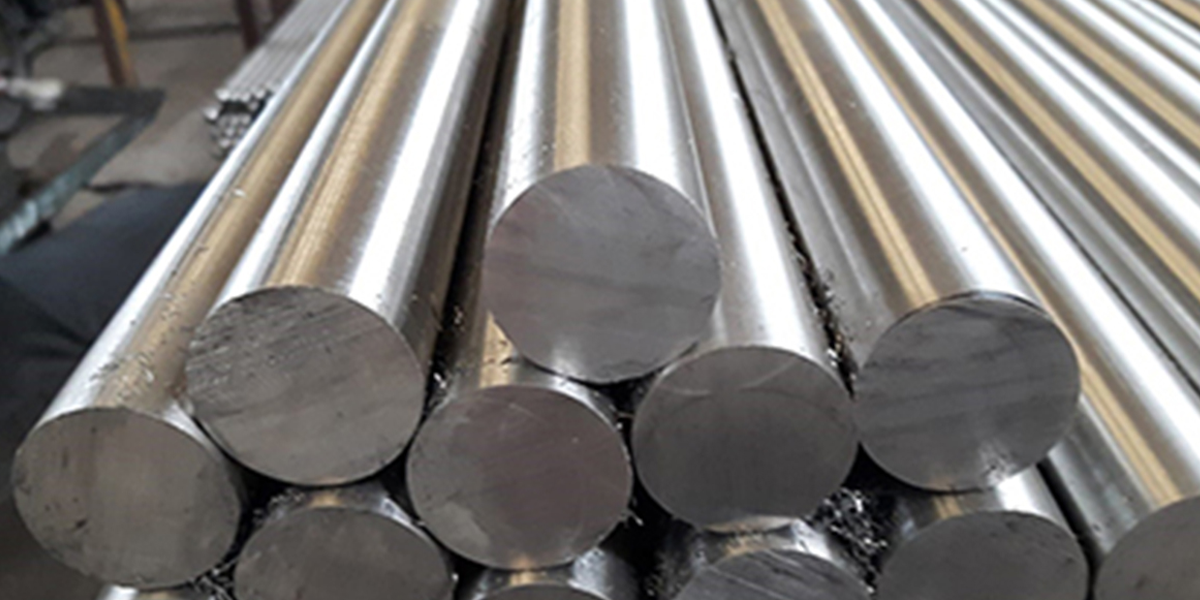

Cryogenic Stainless Steel XM-19 Round Bars Supplier, Stockist & Exporter in India
Top Cryogenic Stainless Steel XM-19 Round Bars Stockist in India, XM-19 Round Bars Supplier, Cryogenic Stainless Steel XM-19 Round Bars Exporter, ASTM A276 XM-19 Round Bars Dealer, Cold Rolled XM-19 Round Bars, Hot Drawn Cryogenic XM-19 Stainless Steel Round Bars Trader, Nitronic 50 Round Bars Stockist in Mumbai, India.
Cryogenic Stainless Steel XM-19 Round Bars are well-known for their superior strength, corrosion resistance, and performance in extremely low-temperature conditions. With a balanced combination of chromium, nickel, and molybdenum, XM-19 has approximately double the yield strength of stainless steel 316 while maintaining good toughness and formability. These round bars are suited for demanding applications in the maritime, cryogenic, chemical processing, and aerospace sectors, where durability and dependability are critical.
Cryogenic Stainless Steel XM-19 Round Bars Supplier
Cryogenic Stainless Steel XM-19 Round Bars Specifications
| Standards | ASTM A276 / A479, ASME SA276 / SA479, GB4226-84, GB/T1220-2007, JISG4311-91, JIS G4318-98, EN 10095-99, GB4226-84, EN10088-3-2005, JIS G904L3-2005, etc |
| Specification | AMS, EN, DIN, JIS, ASTM, BS, ASME, AISI, IS |
| Size | 5 mm To 500 mm |
| Diameter | 2mm to 800mm diameter |
| Length | 3000mm, 6000mm or according to the customer’s requirement. |
| Type | Cryogenic Stainless Steel XM-19 Round Bars |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Hot Rolled (HR), Cold Drawn (CD), Centerless Ground, Peeled & Turned, Mirror Finish, NO.4 Finish, Matt Finish, BA Finish |
| Form | Cryogenic Stainless Steel XM-19 Round Bar |
| Surface | Bright, Black, Rough Turned, Polished, Sand Blasting, Hairline Finish, Smooth Machined |
| Condition | Annealed, Hardened & Tempered, Solution Annealed, Cold Worked, Stress Relieved |
| Technique | Hot Rolled, Cold Rolled, Forged, Extruded, Machined |
Cryogenic Stainless Steel XM-19 Round Bar Chemical Composition
| Ni | Cr | Mo | Mn | Si | C | N | S | P | Cb | V | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 11.5 | 20.5 | 1.5 | 4.0 | – | – | 0.2 | – | – | 0.1 | 0.1 | – |
| MAX | 13.5 | 23.5 | 3.0 | 6.0 | 1.0 | 0.06 | 0.4 | 0.03 | 0.045 | 0.3 | 0.3 | Balance |
Cryogenic Stainless Steel XM-19 Round Bar Mechanical Composition
| Temperature (°F) | Ultimate Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation (%) | Impact Strength (ft-lbs) |
|---|---|---|---|---|
| -320 | N/A | N/A | N/A | 50 |
| -100 | N/A | N/A | N/A | 115 |
| 75 | 117 | 60 | 45 | 170 |
| 200 | 107 | 50 | 43.5 | N/A |
| 400 | 96 | 38 | 43.5 | N/A |
| 600 | 92 | 35 | 42.5 | N/A |
| 800 | 89 | 34 | 43.5 | N/A |
| 1000 | 84 | 32 | 41 | N/A |
| 1200 | 74 | 31 | 38 | N/A |
| 1350 | 66 | 31 | 37 | N/A |
| 1500 | 52 | 30 | 41 | N/A |
Cryogenic Stainless Steel XM-19 Round Bar Equivalent Grades
| Grade | UNS | WERKSTOFF NR. | EN/DIN | ASTM | AISI | Trade Names |
|---|---|---|---|---|---|---|
| XM-19 / Nitronic 50 | S20910 | 1.3964 | X2CrNiMoN22-5-3 | A276, A479, A182 | XM-19 | Armco® Nitronic 50 / NAS 185N / Nitronic® 50 |
Cryogenic Stainless Steel XM-19 Round Bar Physical Properties
| Property | 70°F | 200°F | 300°F | 400°F | 600°F | 800°F | 900°F | 1000°F | 1200°F | 1400°F |
|---|---|---|---|---|---|---|---|---|---|---|
| Coefficient of Thermal Expansion (in/in/°F × 10-6) |
— | 9.0 | — | 9.2 | 9.6 | 9.9 | — | 10.2 | 10.5 | 10.8 |
| Thermal Conductivity (BTU • ft/ft² • hr • °F) |
108 | — | 108 | — | 124 | — | 141 | — | 160 | — |
| Modulus of Elasticity (psi × 106) |
— | 26.2 | — | — | — | — | — | — | — | — |
| Density: 0.285 lb/in³ | ||||||||||
| Melting Range: 2579–2642°F | ||||||||||
| Electrical Resistivity: 492 ohm-circ mil/ft | ||||||||||
For the latest Cryogenic Stainless Steel XM-19 Round Bars price list, get in touch with us today! Email or call us to get updated pricing and availability for Cryogenic Stainless Steel XM-19 / UNS S20910 / DIN 1.3964 / ASTM A276 Nitronic 50 Stainless Steel Round Bars available in ready stock.
